BAPI - Choosing The Right Strategy

Updated: May 31, 2022


ree

Business Application Programming Interface

(BAPI)


SAP BAPI (Business Application Programming Interface) is a standard interface to the business object models in SAP products.


BAPIs are the primary method through which customer code and third-party applications interact with SAP products. BAPIs wrap the internal layers of SAP's business object model to ensure that all business logic, validations and authorisation checks are executed properly when accessing or changing business objects.


BAPIs are implemented as function modules that call SAP internal code. Depending on which set of BAPIs is being used, they may call business object models defined using the Business Objects Processing Framework (BOPF) or legacy models defined using programs, tables and function modules.


Types of BAPIs —

  1. Standard BAPI — BAPI created by SAP labs.


2. Custom BAPI — BAPI created by users


Uploading data to standard table using standard BAPI (BAPI_BANK_CREATE) .


Coding Screen —


ree
ree

Key points in BAPI programs —


ree

We got these two fields from the function that we called i.e “BAPI_BANK_CREATE”.


Steps to know particular data type for variables —


Step 1 - On “SE37” screen type the desired function module and click on display


ree

Step 2 - Click on import button and you will see the importing parameters. Search for the desired data type or structure. In this case Bank_Address is the required field.


ree


Step 3 - Double click on the Bank_Address and you will see the components in this structure. A variable of this structure type will contain all the components of the structure.

ree

Step 4 - Now go back and click on export button and get the return data type.


ree

Output —


ree

ree

Remote Function Call (RFC)


Communication between applications of different systems in the SAP environment includes connections between SAP systems as well as between SAP systems and non-SAP systems. Remote Function Call (RFC) is the standard SAP interface for communication between SAP systems. RFC calls a function to be executed in a remote system.

There is now a whole series of different RFC variants, each of which has different properties and is used for a specific purpose.


Custom BAPI


Step 1 - Create import and export structure using tcode “SE11”.

Step 2 - Create Function Module using import and export structure using tcode “SE37”.


Step 3 - After creation of Function Module convert it into RFC and release that RFC.

Step 4 - Create business object using tcode “SWO1”.


Step 5 - After BAPI creation we have to add RFC Function module into business object.


Step 6 - At last release business object components and component types and then finally release Business Object.


Step 1 - Create import and export structure using tcode “SE11”.

Import structure —


ree

ree


Enter required fields.


ree

Save the structure in package.


ree


Do same for Exporting structure —


ree

Step 2 - Create Function Module using import and export structure using tcode “SE37”.


ree

ree

ree

ree

ree

Step 3 - After creation of Function Module convert it into RFC and release that RFC.

To convert FM into RFC click on attribute button and select Remote Enabled Module radio button


ree

Enter a return type variable as BAPI has a return type


ree

Source Code —



ree

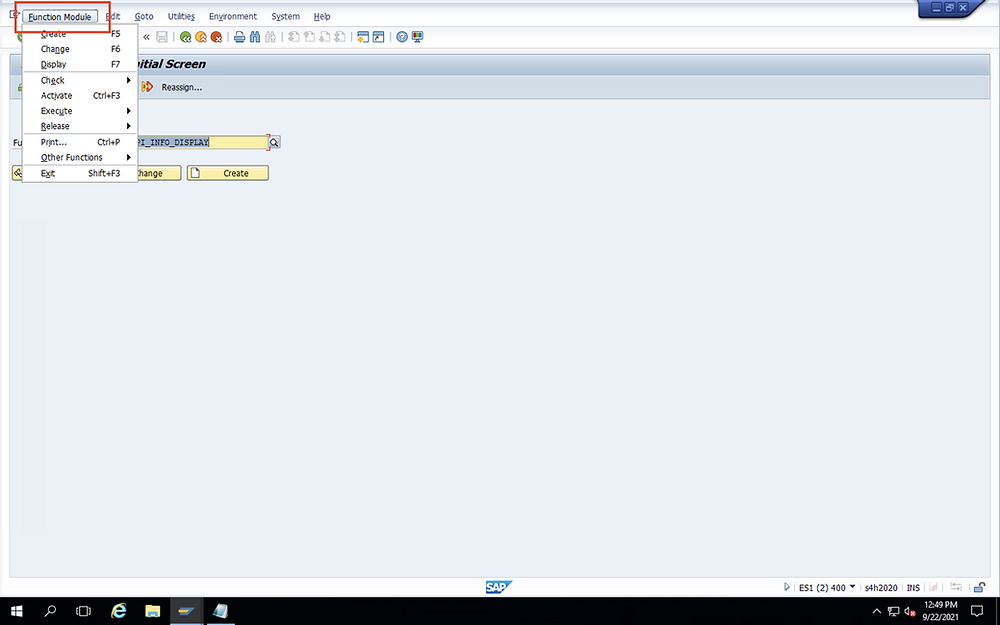

To release click on SE37 screen type the name of the FM you want to release and then click on “Function Module” option in the top menu.


ree

After that click on release and release.


ree

Step 4 - Create business object using tcode “SWO1”.


Write name of the business object and click on create.


ree

Fill the fields and for application field BAPI is always Cross-application


ree


After filling click on the green tick and save it in package.


ree

Business Object is formed


ree



Step 5 - After BAPI creation we have to add RFC Function module into business object.


Click on utilities in the top menu then API methods and add methods.


ree

After this type the function module created for this program and click on enter. Function module will successfully be entered in the business object.


ree


Step 6 - At last release business object components and component types and then finally release Business Object.

To release click on edit in the top menu then change release status. Now you will see two options. We have to release both object and object components.


ree

Click on object type , 4 options will appear. In order to release first we have to click on ‘To modeled’ then ‘To implemented’ and last on ‘To released’.


ree

Tick symbol will ensure if the object type is successfully released or not.


ree

Likewise do the process for Object type component

Tick ensures if object type component is released or not


ree

Last step is to click on generate (circled icon) and our custom BAPI is successfully created.


ree



ree




ree
